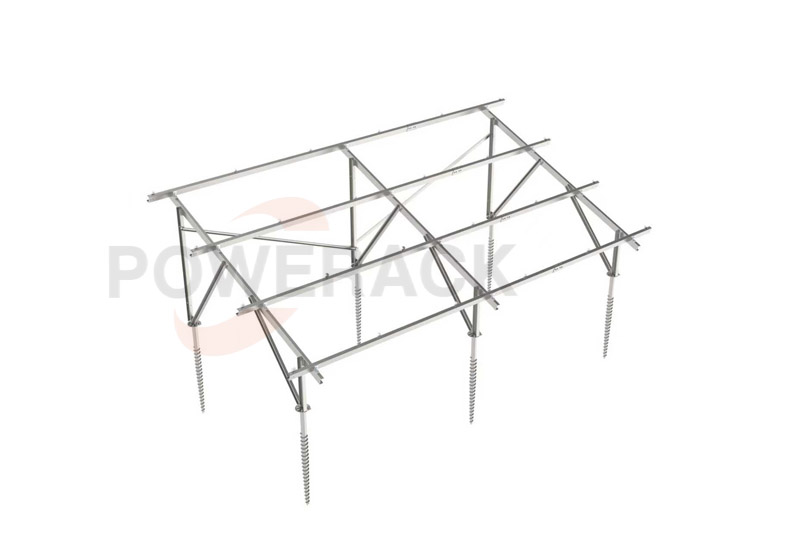

Installation of zinc-aluminum-magnesium helical ground anchors offers a fast, flexible, and environmentally friendly solution for ground-mounted foundation construction. Using specialized machinery, the anchor body with helical blades is directly rotated into the ground, providing a stable mounting foundation for upper structures such as solar panels or fencing.
Equipment Positioning and Alignment: Move the pile driver to the first marked point and adjust the equipment to precisely align the power head with the ground pile.
Screw-in Installation: Activate the equipment to rotate the pile using hydraulic or mechanical power, driving it into the soil like a screw.
Quality Inspection: During or after insertion, instruments monitor pile verticality and top elevation in real-time to ensure compliance with design specifications.
Column Installation: Securely connect the support columns to the pile tops using flanges and bolts.
Beam and Brace Assembly: Sequentially install structural components including beams, diagonal braces, and tie rods. All connections are bolted without requiring on-site welding or surface treatment.
High Adaptability: Provides stable support in soft soil, rocky terrain, or slopes exceeding 30° incline.
High Load-Bearing Capacity: Achieves exceptional uplift and compressive strength through interlocking spiral blades with soil.
Durable: Zinc-aluminum-magnesium or hot-dip galvanized coatings provide excellent corrosion resistance, adapting to diverse outdoor environments and extending service life.
Environmentally Friendly: Installation causes minimal ground disturbance, and the piles themselves are fully removable and recyclable, leaving no residual concrete waste.
